2. Networking Black OMA-SG3428XMP

Name: 2. Networking Black OMA-SG3428XMP
SKU: OMA-SG3428XMP
Price: 731.44 EUR
Availability: InStock

Aggiungi alla Lista desideri

731,44 €

Omada Switch L2+ 24Porte Gigabit PoE+ 4SFP+10GE

28 persone stanno visualizzando questo prodotto in questo momento

3 in stock

Pagamento sicuro

Descrizione

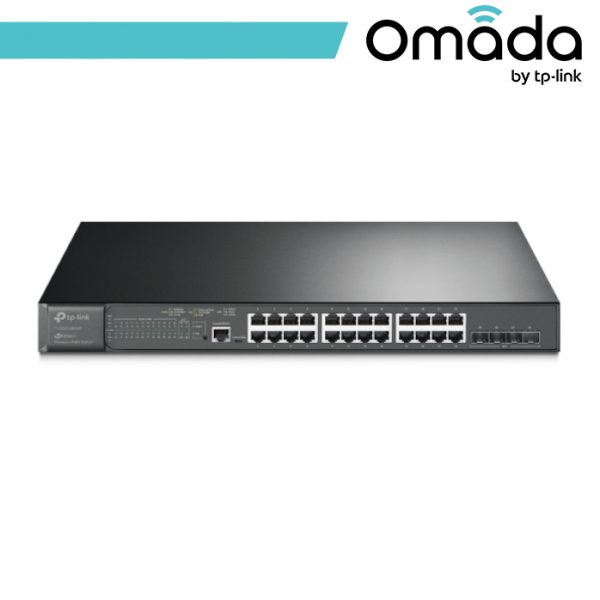

OMA-SG3428XMP – Switch Managed L2+ con 24 Porte Gigabit PoE+ e 4 slot SFP+ 10GE | JetStream by Omada

Uplink SFP 10 GE – 4 slot SFP+ 10Gbps per connessioni ad alta velocità.
Switch Gigabit – 24 porte Gigabit LAN PoE+.
Power Budget PoE 384W – Le 24 porte PoE+ supportano gli standard 802.3at/af con power budget totale di 384W, fino a 30W per singola porta.^*
L2 Static Routing – Il routing statico consente di ottimizzare le risorse di rete impostando percorsi di connessione interni predefiniti dall'amministratore.
Sicurezza avanzata – IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication e molto altro.
Ottimizzazione video/voce: Con funzionalità L2/L3/L4 QoS e IGMP snooping.
Gestione intuitiva standalone – Modalità gestite WEB, CLI (Console Port, Telnet, SSH), SNMP, RMON e Dual Image.
Dispositivo integrato Omada SDN* – La nuova soluzione Omada Software Defined Networking consente di gestire le reti Omada con modalità Hybrid Cloud e Full-Cloud. Integra Access Point della serie EAP, Router VPN SafeStream e Switch JetStream by Omada.
App Omada – L'intuitiva app Omada, per dispositivi Android e iOS, consente di accedere da remoto alla rete tramite Cloud, in qualunque momento, ovunque ti trovi.

CARATTERISTICHE HARDWARE
Interfaccia	• 24× 10/100/1000 Mbps RJ45 Ports • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
Numero ventole	2
Alimentazione	100-240 V AC~50/60 Hz
Porte PoE+	• Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports, up to 30 W per port • Power Budget: 384 W
Dimensioni ( L x P x A )	17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Tipo di montaggio	Rack Mountable
Max Power Consumption	34.4 W (110V/60Hz) ( no PD device connected) 465.8 W (110V/60Hz) ( with 384 W PD device connected)
Max Heat Dissipation	117.38 BTU/h (110 V/60 Hz) (no PD device connected) 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)

PRESTAZIONI
Capacità di switching	128 Gbps
Packet Forwarding Rate	95.23 Mpps
Tabella ARP	16 K
Jumbo frame	9 KB

CARATTERISTICHE SOFTWARE
QoS (Quality of Service)	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling – SP (Strict Priority) – WRR (Weighted Round Robin) – SP+WRR • Bandwidth Control – Port/Flow based Rating Limiting • Smoother Performance • Action for Flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark
Funzionalità L2 e L2+	• Link Aggregation – static link aggregation – 802.3ad LACP – Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol – 802.1d STP – 802.1w RSTP – 802.1s MSTP – STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection – Port based – VLAN based • Flow Control – 802.3x Flow Control – HOL Blocking Prevention • Mirroring – Port Mirroring – CPU Mirroring – One-to-One – Many-to-One – Tx/Rx/Both
L2 Multicast	• IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave – IGMP Snooping Querier – IGMP Authentication • IGMP Authentication • MLD Snooping – MLD v1/v2 Snooping – Fast Leave – MLD Snooping Querier – Static Group Config – Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profile
VLAN	• VLAN Group – Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 7 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN (QinQ) – Port-Based QinQ – Selective QinQ • Voice VLAN
ACL (Access Control List)	• Time-based ACL • MAC ACL – Source MAC – Destination MAC – VLAN ID – User Priority – Ether Type • IP ACL -Source IP – Destination IP – Fragment – IP Protocol – TCP Flag – TCP/UDP Port – DSCP/IP TOS – User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy – Mirroring – Redirect – Rate Limit – QoS Remark • ACL apply to Port/VLAN
Sicurezza	• IP-MAC-Port Binding – 512 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding – 512 Entries – DHCPv6 Snooping – ND Detection – IPv6 Source Guard: 100 Entries • DoS Defend • Static/Dynamic Port Security – Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control – kbps/ratio control mode • 802.1X – Port base authentication – Mac base authentication – VLAN Assignment – MAB – Guest VLAN – Support Radius authentication andaccountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control
IPv6	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications – DHCPv6 Client – Ping6 – Tracert6 – Telnet (v6) – IPv6 SNMP – IPv6 SSH – IPv6 SSL – Http/Https – IPv6 TFTP
Caratteristiche L3	• 16 IPv4/IPv6 Interfaces • Static Routing – 48 static routes • Static ARP – 128 Static Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay – DHCP Interface Relay – DHCP VLAN Relay • DHCP L2 Relay
Gestione	• Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 – Trap/Inform – RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log
Caratteristiche avanzate	• Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • ZTP (Zero-Touch Provisioning)**
MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB

ALTRO
Certificazione	CE, FCC, RoHS
Contenuto della confezione	• TL-SG3428XMP Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
Ambiente	• Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Confronto rapido

	2. Networking Black OMA-SG3428XMP Rimuovi	2. Networking Light brown IC-G1105PD Rimuovi	2. Networking Black TL-SF1005LP Rimuovi	2. Networking White NT-POE30G-AT Rimuovi	2. Networking Black MS-MS108GP Rimuovi	2. Networking Black TL-SG1016PE Rimuovi
Nome	2. Networking Black OMA-SG3428XMP Rimuovi	2. Networking Light brown IC-G1105PD Rimuovi	2. Networking Black TL-SF1005LP Rimuovi	2. Networking White NT-POE30G-AT Rimuovi	2. Networking Black MS-MS108GP Rimuovi	2. Networking Black TL-SG1016PE Rimuovi
Immagine
SKU	OMA-SG3428XMP	IC-G1105PD	TL-SF1005LP	NT-POE30G-AT	MS-MS108GP	TL-SG1016PE
Valutazione
Prezzo	731,44 €	88,17 €	58,45 €	24,86 €	45,73 €	306,33 €
Disponibilità	3 in stock	Esaurito	8 in stock	200 in stock	15 in stock	3 in stock
Descrizione	Omada Switch L2+ 24Porte Gigabit PoE+ 4SFP+10GE	Switch 5 porte Gigabit PD - 4 porte PoE OUT 1 porta PoE IN	Switch Desktop 5 porte 10/100Mbps con 4-Port PoE TL-SF1005LP	Gigabit Ethernet Power Injector, 30W, 802.3at, 802.3af, 48V	Switch 8 porte Gigabit con 7 porte PoE+ Mercusys MS108GP	Switch 16 Porte Gbit 8 PoE 110W rack TP-Link TL-SG1016PE
Peso	6170 g	500 g	250 g	577 g	300 g	2500 g
Colore
Aggiungi al carrello	Add to cart	Read more	Add to cart	Add to cart	Add to cart	Add to cart

Totale parziale	0,00 €
Totale	0,00 €
